Build Better Tracks: Ballast & Sub-ballast Stabilisation with Geogrid

For railways around the world, line speed restrictions and expensive and disruptive track maintenance are frequently caused by poor track geometry and misaligned rails. However, Tensar's trackbed stabilisation systems with Tensar geogrids have been proven to substantially reduce track maintenance, being the subject of extensive independent research and development and approved by Network Rail in the UK and National Rail Authorities worldwide.

Tensar has two forms of stabilisation geogrid. Both are fully tested and proven in multiple rail projects worldwide.

• Tensar InterAx geogrid – The most advanced stabilisaiton geogrid
• Tensar TriAx geogrid

How Tensar Stabilisation Geogrids Work: Mechanical Stabilisation

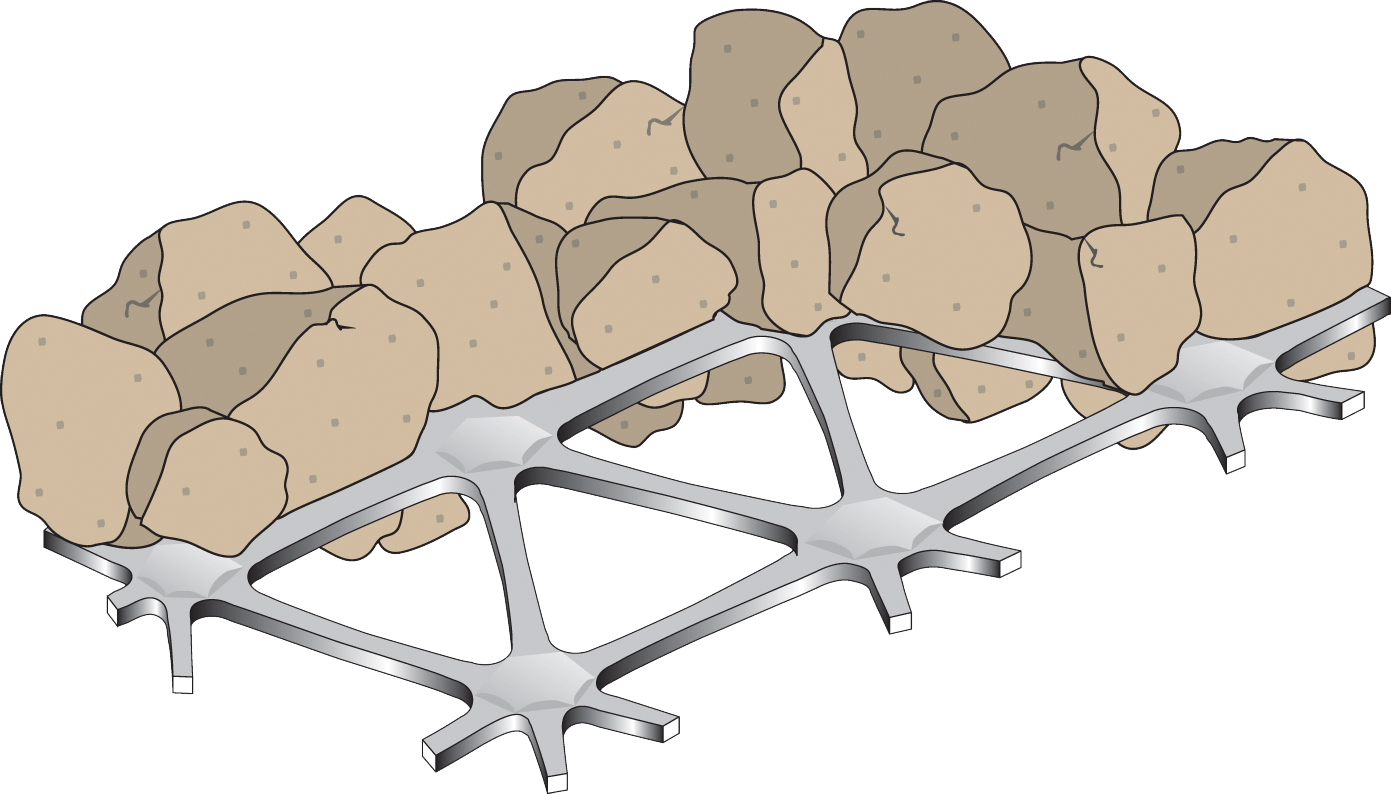

Tensar stabilisation geogrids stabilise ballast and sub-ballast layers through the principles of “mechanical interlock” and confinement. When unbound aggregate is compacted over a geogrid, the coarser particles partially penetrate through the geogrid apertures and lock into position. The geogrid’s ability to confine aggregate particles significantly limits particle movement and reduces lateral spreading of the aggregate , a major cause of ballast and sub-ballast settlement. The load distribution over the underlying subgrade is enhanced, increasing its effective bearing capacity. This video shows a side-by-side comparison demonstrating how Tensar TriAx geogrid works to combat settlement compared to an unstabilised track.

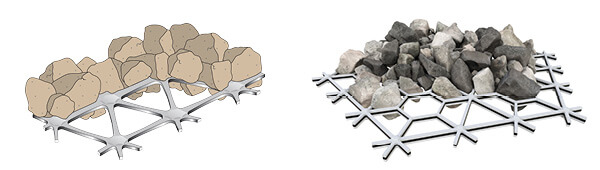

The two geogrid types

Tensar stabilisation geogrids are used to stabilise the trackbed structure in two ways:

Sub-ballast Stabilisation

Installed at the bottom of the sub-ballast, Tensar stabilisation geogrids help distribute imposed loads more efficiently over the underlying subgrade, leading to a reduction in the required sub-ballast layer thickness.


Benefits of sub-ballast stabilisation include:

• Maintaining track geometry for longer
  Incorporating Tensar stabilisation geogrid in sub-ballast layers can reduce the rate of track settlement, maintaining track geometry for longer and extending ballast life.
• Saving time and money on construction
  Sub-ballast layers stabilised with Tensar stabilisation geogrid are up to two-thirds thinner, while maintaining bearing capacity, and excavation and replacement of weak subgrades is reduced, cutting construction time and costs.
• Improving sustainability
  Reduced excavation and disposal of unsuitable material, along with reduced need for imported materials delivers carbon savings.

Ballast Stabilisation

Installed between the ballast and sub-ballast layers, Tensar stabilisation geogrids limit lateral particle migration and thereby minimise track settlement. This helps increase the period between maintenance cycles by three to five times.


Benefits of ballast stabilisation include:

• Robust trackbed
  Using Tensar stabilisation geogrid can reduce the rate of ballast settlement and reduce traffic-induced degradation, delaying sleeper settlement, maintaining track geometry for longer and extending ballast life.
• Reducing maintenance
  Maintenance intervals can be up to three times longer, if mechanically stabilised ballast is used.
• Reducing life cycle costs
  The use of geogrid in ballast can reducing whole-life costs, in terms of both cash and carbon.
